Product Description

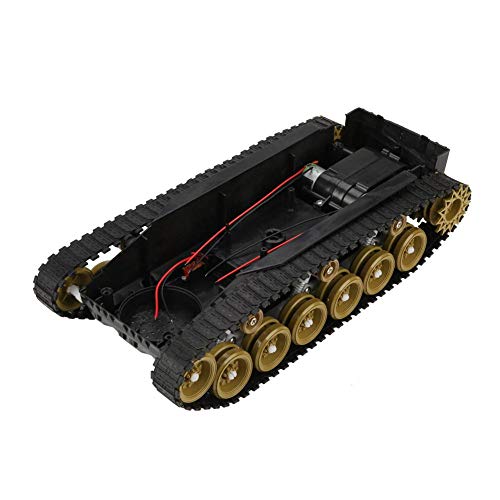

Heneng robot tank platform kit is designed for learning robotics electronic car with Arduino or Raspberry pi programming. You can add robotic arm or robotics HD Camera on this robotic car platform for DIY.
Compatible with most popular controllers in the market such as Arduino, Raspberry Pi and so on

Product Parameters:
Product Type: Robot Tank Chassis
Motors: 2pcs DC 12V motor
Load current: 0.68A max
Motor speed: no load 100Rpm/min; load 93Rpm/min
Base material: iron (thickness: 2mm)
Surface treatment: spray paint
Max Speed: 12 m / min
Max Load: 22LBs / 10kg
Max Climbing angle: 40 degrees
Product color: black and silver
Track material: ferronickel
Wheel: 28pcs small Bearing wheel(Size: 22*7mm); 4pcs big Bearing wheel (Size: 36*12mm) ; 4pcs drive wheel (Size: 42*2mm)
Wheel material: solid ferronickel
Product size: 32*25*10cm / 12.5*10*4 Inch
Packing size: 39*31.5*17.5cm /15.5*12.5*6.9 Inch
Tank chassis weight: 4kg/8.8 LBs
Gross Weight：4.5kg

Package list:
Smart Car Plate * 1
Power wires * 4

Product Features

• Not need assembly : Smart Robot Chassis do not need assembling. Compatible with Arduino, Raspberry Pi.
• The main parameters of Arduino Starter kit: Dimension: 12.5*10*4 Inch, weight: 8.8 lbs; Max load 22 lb /10 kg, Max speed 12m/min, Max climbing angle 40°
• Sturdy structure: 32 pieces ferronickel solid Bearing wheel + 4 pieces ferronickel solid Drive wheel+2 pieces of 2 mm thick iron base.
• Dual 12V Powerful motor, Guarantee fast and smooth operation; C-type shock absorption structure for a variety of pavements
• NOTE: The track is made of ferronickel and the surface is painted. As the use of time accumulates, there will be varying degrees of paint detachment. this is normal phenomenon.
